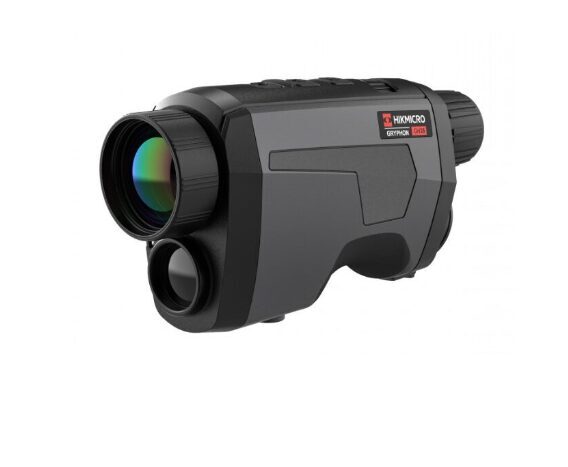

Hikmicro Gryphon GH25 izstādes paraugs

Termālais un diena/nakts monoklis

- Thermal resolution 384 x 288
- NETD less than 35 mk (25°C, F# = 1.0)
- 1024 × 768 px resolution OLED screen
- Supports video/photo recording, built-in EMMC (16 GB)
- Fusion Technology (merging of thermal imaging and optical imaging)
- Up to 4.5 hours of battery life

THERMAL SENSOR:
- Sensor: Uncooled
- Resolution: 384x288
- Frame rate: 50 Hz
- Pixel Pitch: 12 μm
- NETD: ≤ 35 mk (@25°C), F#=1.0
- Focal length: 50 mm
- Field of view: 8.78° × 7.03° (H × V)
- Detection range: Max. 1200 m

OPTICAL SENSOR:
- Sensor: 1/3ʺ CMOS, 1960x1200 @25 FPS
- Focal length: 22 mm

IMAGE DISPLAY:
- Monitor: OLED, 1024 × 768
- Palettes: Black hot, white hot, red hot, fusion
- Digital zoom: 1x, 2x, 4x, 8x

- WiFi mode: Yes

- Interface: USB-C

- Photo capture: Yes
- Video capture: Yes

SYSTEM (parameters):
- Battery type: removable battery
- Internal memory: 16 GB
- Battery type: 18650 Battery
- Battery life: 4.5 h
- Operating temperature: -20 / +55 °C
